Project NameControl System SIL-2 Programming for Reciprocating Compressor Application
Case Study: Rotary Equipment Control
SIL-2 Compressor Control System for Reciprocating Compressor Application - Rockwell ControlLogix
SIL-2 rated PLC and SCADA solution for 4 reciprocating compressor units - Make-Up and Recycle service - delivered for Siemens Energy with end user YPF, USA.
Project Overview
Project Information
Hive Automation delivered a complete, SIL-2 rated control system automation solution for a Reciprocating Compressor application developed for Siemens Energy, with end user YPF, USA.
This project focused on ensuring precise, safe, and efficient control of four compressor units - two Make-Up service and two Recycle service - in a critical process environment.
Our scope covered end-to-end PLC, HMI, and SCADA software development, rigorous in-house testing, and successful site commissioning.
The system was built on a redundant SIL-2 Rockwell ControlLogix (1756-L72) architecture - providing hot-standby CPU redundancy, redundant I/O for critical signals, IPC-based operator workstations, and local HMIs at each compressor unit for on-site operation.
Project Details
Project Delivery Snapshot
Completion DateOctober 2022
Scope of WorkPLC | HMI | SCADA Programming | Testing | Site Commissioning
LocationUSA (engineered and tested in OEM Place)
System Architecture
Technical Architecture

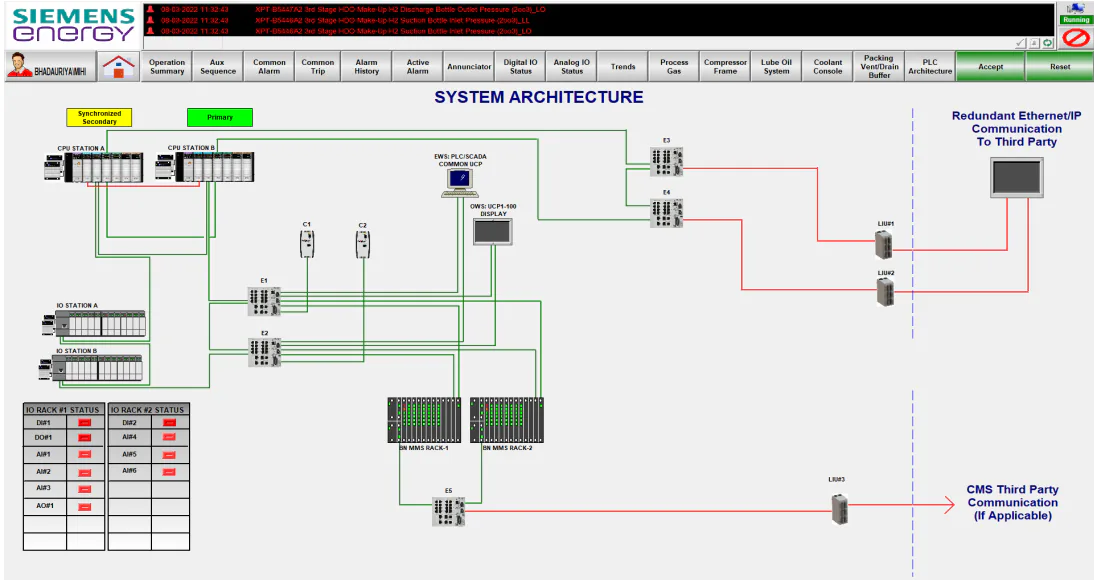

Redundant SIL-2 Rockwell ControlLogix (CPU 1756-L72) with redundant I/O stations for critical safety signals across all four compressor units.

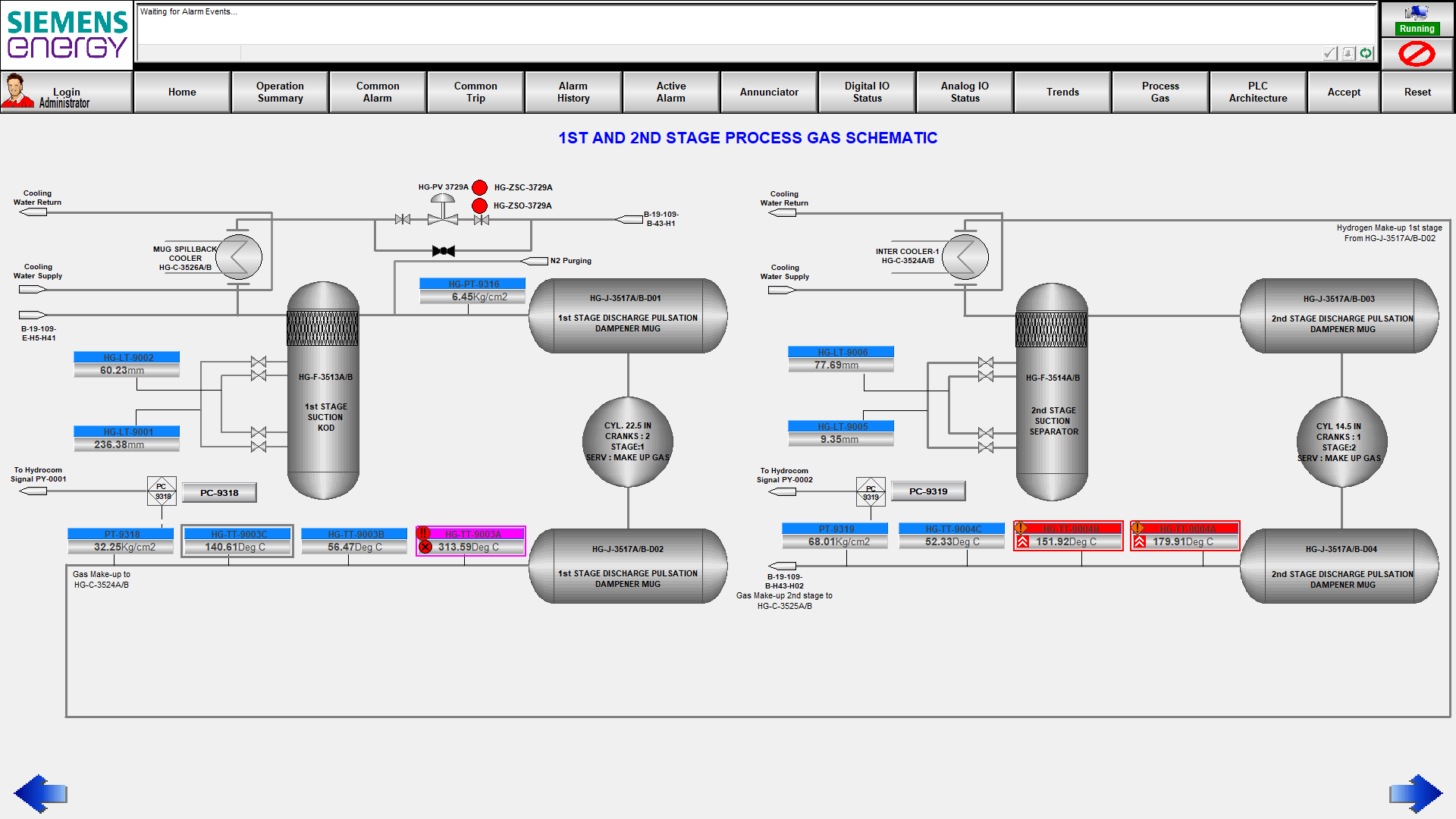

IPC-based operator workstations in the centralised control room, with FactoryTalk View used for SCADA and HMI development and plant-wide supervision.
Local HMIs at each of the four compressor units with Studio 5000 Logix Designer used for PLC programming, sequencing, interlocks, and shutdown logic.
Delivery Scope
Scope of Work & Key Deliverables
- Control system architecture design - SIL-2 redundancy scheme, panel GA, and wiring drawings
- PLC programming - Rockwell ControlLogix (Studio 5000) for all 4 compressor unit sequences

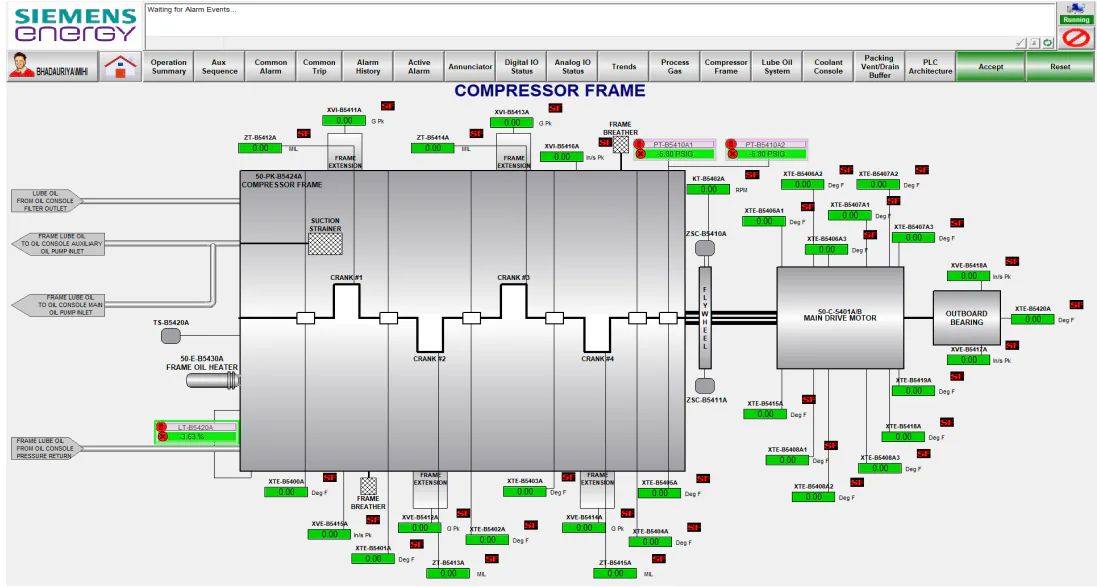

- HMI development - local panel HMIs for on-site compressor operation

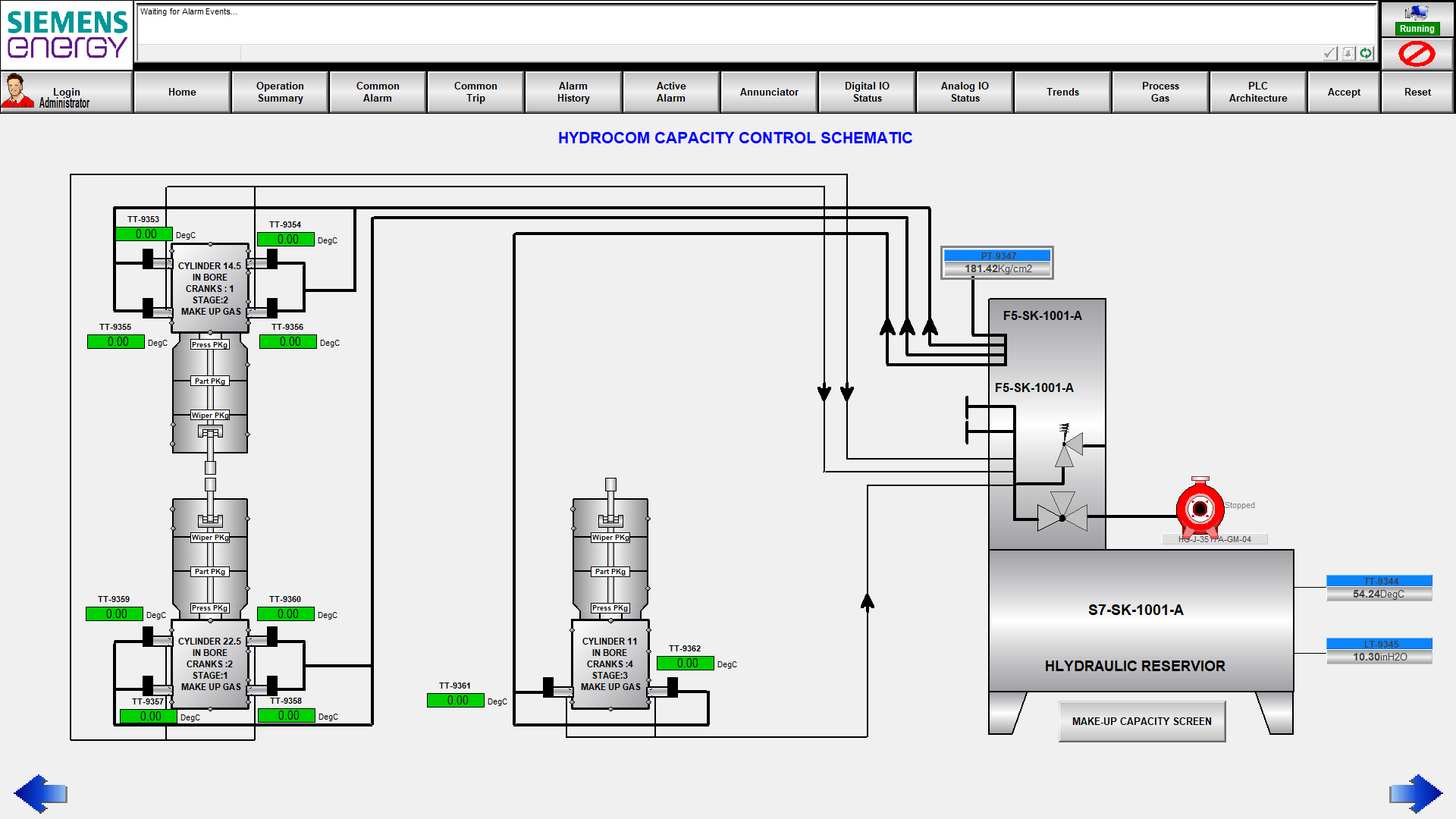

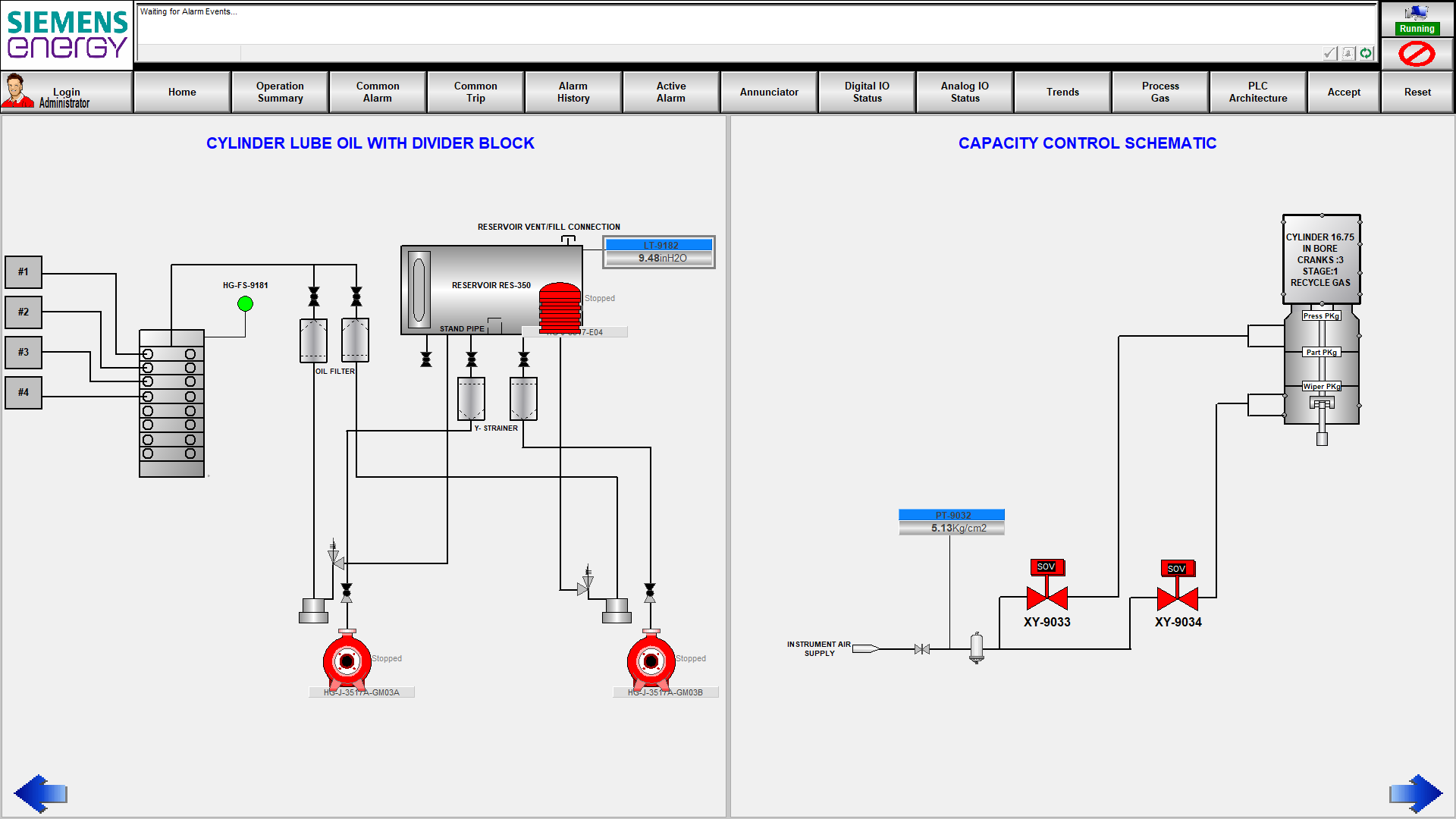

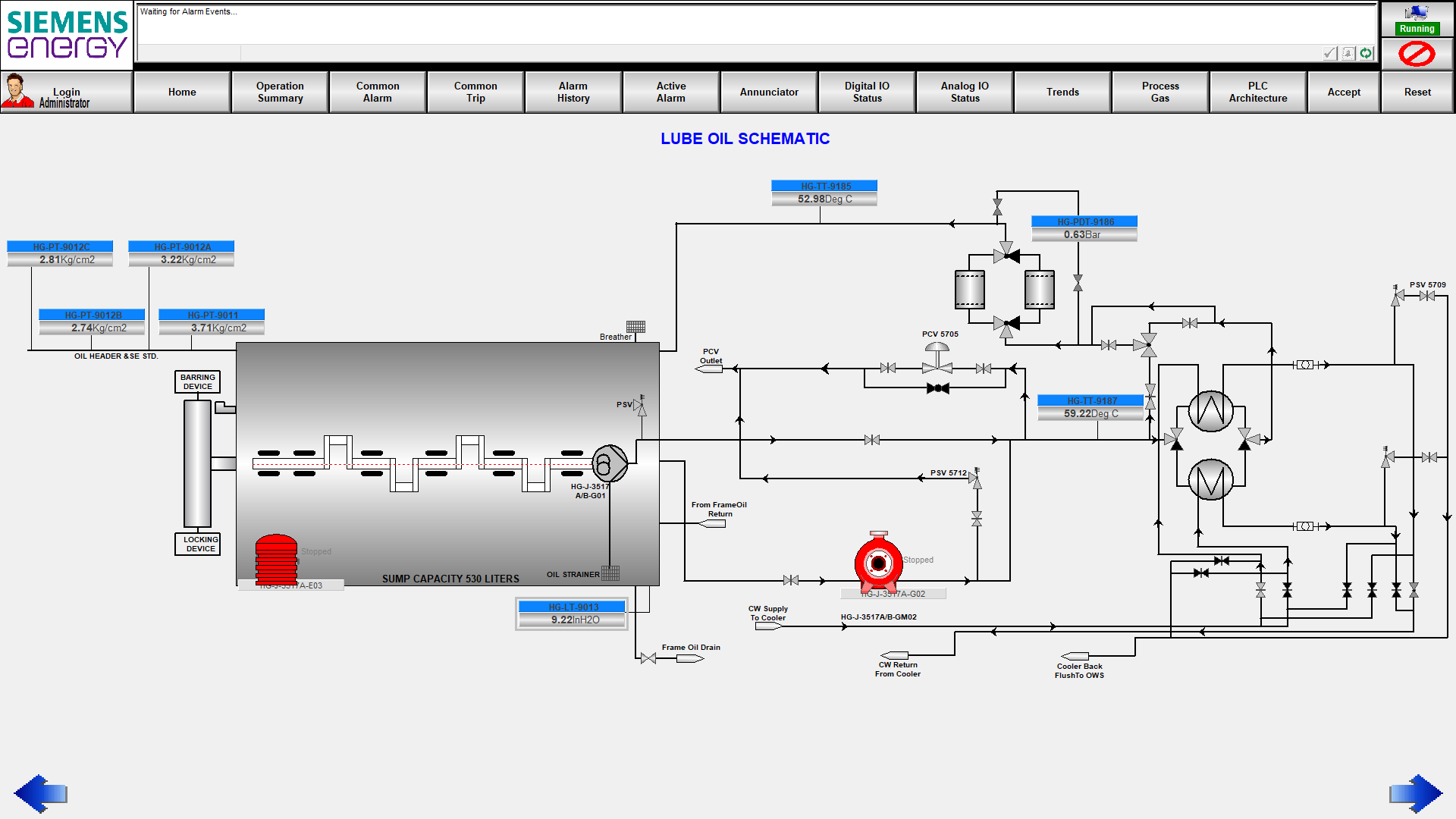

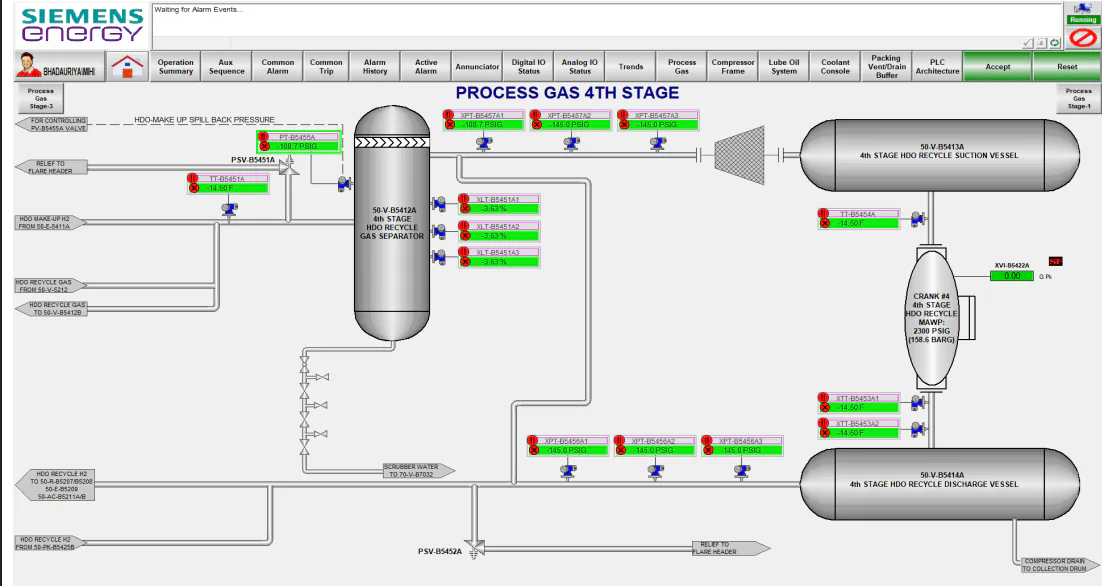

- SCADA integration and deployment - FactoryTalk View centralised monitoring for all 4 units
- In-house Factory Acceptance Testing (FAT) and SIL verification activities
- On-site commissioning at the USA facility
Project Impact
Challenge & Outcome
Challenge
Engineering a unified SIL-2 control system for four independent compressor units - each with its own startup permissives, anti-surge sequences, vibration monitoring, and ESD logic - required careful cause-and-effect documentation, SIL verification, and a FAT that validated all shutdown functions against the safety requirements specification.
Outcome / Result
SIL-2 Rockwell ControlLogix compressor control system successfully commissioned for YPF, USA, in October 2022. All four compressor units - Make-Up and Recycle service - now operate under unified centralised SCADA with local HMI panels at each unit.
Process Coverage
Processes Automated
- Four reciprocating compressor units under one unified SIL-2 control architecture for Make-Up and Recycle service.

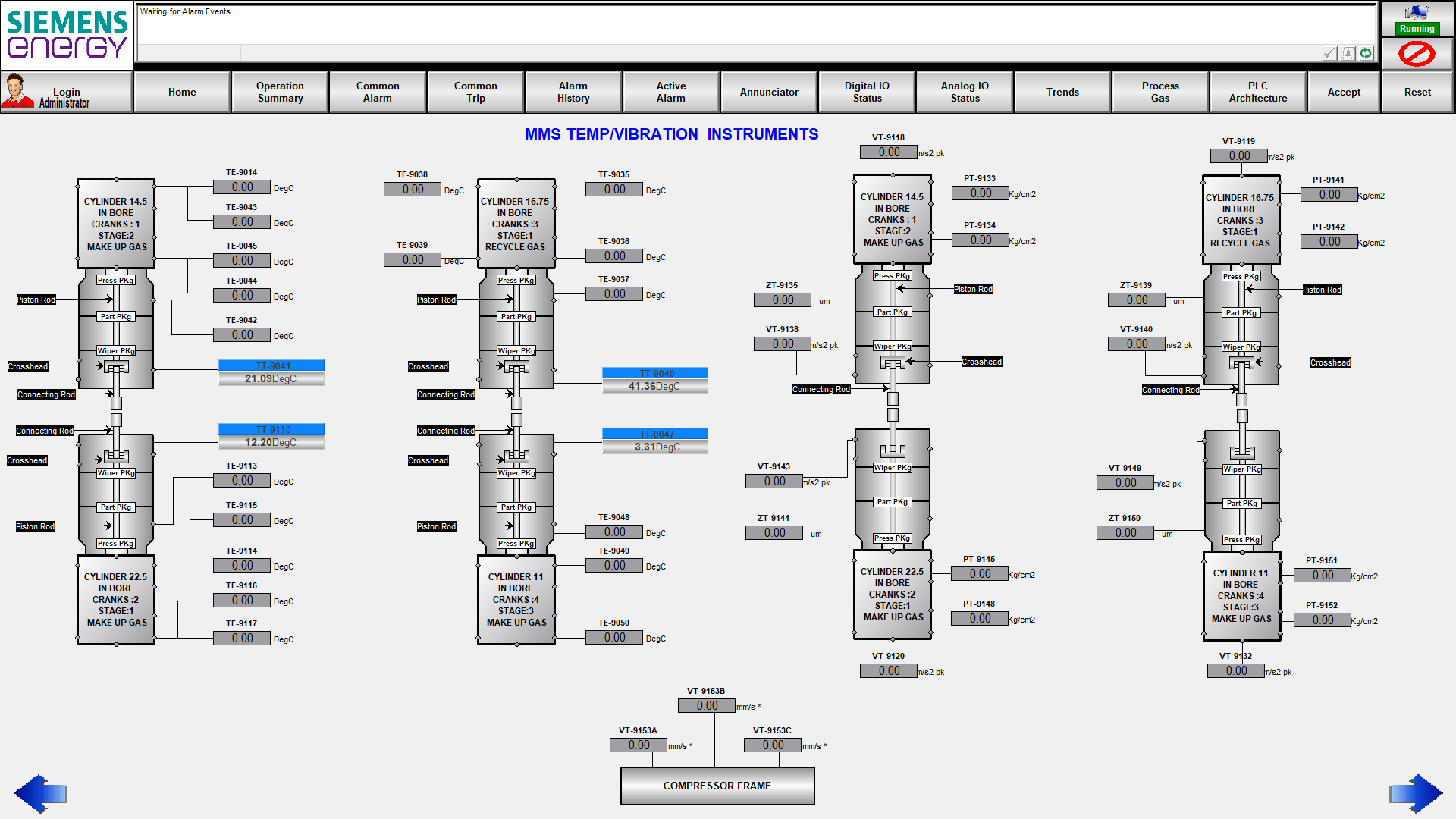

- Safety-critical functions including vibration trip, high-pressure shutdown, lube oil low-pressure, and ESD with cause-and-effect matrix programming and bypass management.
- Anti-surge sequences, startup permissives, shutdown logic, and alarm handling validated through FAT and SIL verification activities.
- Centralised SCADA visibility with local HMI panels at each compressor unit for on-site operation and diagnostics.
I/O Summary
I/O Capacity & Configuration
Our Clients
Trusted by Leading Companies & Brands
0+Projects Completed
0+Satisfied Clients
0+Expert Engineers
Frequently Asked Questions
Rotary Equipment Control Automation Questions, Answered
SIL-2 (Safety Integrity Level 2) means the safety functions within the control system - such as high-pressure shutdown, vibration trip, and ESD activation - achieve a Probability of Failure on Demand between 10^-3 and 10^-2, as defined by IEC 61511 and IEC 62061. It requires redundant hardware, verified logic, and documented SIL assessment.
Ready to Transform Your Industrial Operations?
Partner with Hive Automation for Reliable Automation Support
We engineer SIL-rated compressor and rotating equipment control systems for oil and gas and refinery applications - using Rockwell ControlLogix and Siemens platforms. Contact us with your compressor specifications for a technical proposal.
